ASTM D6228 – Determination of Sulfur Compounds in Natural Gas and Gaseous Fuels
Analyzer Description
Configuration:
1-valve, 1-capillary column, PFPD
Sample type:
Natural gas and gaseous fuels
Compounds Separated:
- hydrogen sulfide
- carbonyl sulfide/sulfur dioxide composite
- methyl mercaptan
- ethyl mercaptan
- dimethyl sulfide
- carbon disulfide
- isopropyl mercaptan
- t-butyl mercaptan
- n-propyl mercaptan
- ethyl methyl sulfide
- thiophene/2-butyl mercaptan composite
- diethyl sulfide
- n-butyl mercaptan
- dimethyl disulfide
- bromothiophene/diethyl disulfide composite
- methylthiophene
- 3-methylthiophene
- phenyl mercaptan
- benzothiophene
Lower detection limits:
0.05 ppm
Methods met:
ASTM D6228, Wasson-ECE W4427

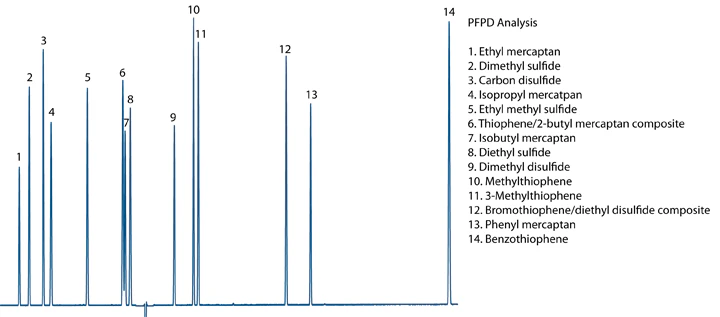

Typical Chromatogram
Key Features and Benefits
- Gas chromatograph can be configured to contain additional applications.
- Cryogenic cooling may be used to separate carbonyl sulfide and sulfur dioxide.
- Fused silica lined tubing ensures repeatability and the lowest detection limits.
- PFPD provides proportional response allowing uncalibrated peaks to be quantified using response factors from known peaks of similar structure.
