Oxygen Driven Combustion Gas Analysis
Analyzer Description
Configuration:
TCD, FPD, 3-valves, 1-capillary column, 2-packed columns
Sample Type:
Oxygen driven combustion gases
Compounds Separated:
Carbon dioxide, carbon monoxide, oxygen/argon composite, methane, ethane, ethylene, nitrogen, hydrogen sulfide, sulfur dioxide
Lower Detection Limits:
5 ppm for the compounds detected by the FPD
100 ppm for compounds, excluding carbon monoxide, detected by the TCD
200 ppm for carbon monoxide
Methods Met:
Wasson-ECE W1716

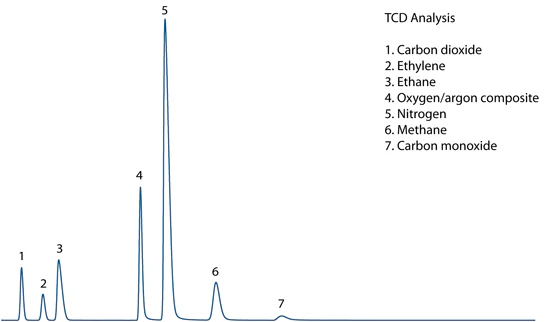

Typical Chromatogram
Key Features and Benefits
- Fused silica lined tubing ensures repeatability and the lowest detection limits.
- 12 minute analysis time.
- Cryogenic cooling may be used to separate argon and oxygen.
