Refinery Gas Analysis (RGA) With Sulfur Selective Detection
Analyzer Description
Configuration:
6-valve, packed and capillary columns, fused silica tubing, TCD / TCD / FID / SCD
Sample type:
Natural gas, sour gas, other refinery gases
Components separated:
- C1 - C7
- hydrogen
- carbon dioxide
- hydrogen sulfide
- oxygen
- nitrogen
- carbon monoxide
- carbonyl sulfide
- sulfur dioxide
- methyl mercaptan
- ethyl mercaptan
- dimethyl sulfide
- carbon disulfide
- isopropyl mercaptan
- t-butyl mercaptan
- n-propyl mercaptan
- ethyl methyl sulfide
- thiophene
- 2-butyl mercaptan
- isobutyl mercaptan
- diethyl sulfide
- n-butyl mercaptan
- dimethyl disulfide
- 2-methylthiophene
- 3-methyl thiophene
- diethyl disulfide
Lower detection limits:
20 ppm for hydrocarbons, 100 ppm for permanent gases, 500 ppm for H2S on the TCD, 50 ppb for all sulfur compounds using the SCD
Methods met:
ASTM D1945, ASTM D1946, ASTM D7833, UOP 539, Wasson-ECE 383D-SCD, W2639

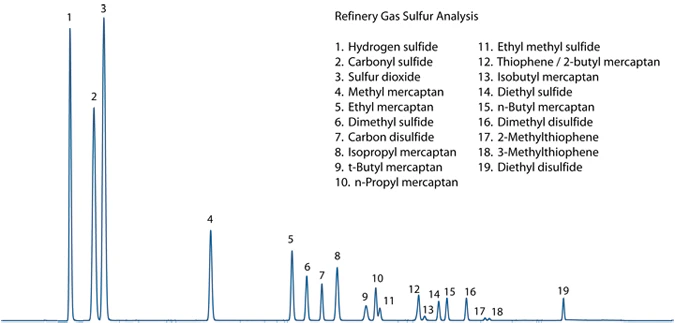

Typical Chromatogram
Key Features and Benefits
- The trace sulfur analysis is performed at the same time as the other analyses
- The backflush peak can be tailored to specific samples (e.g. C6+ or C8+ backflush composite peaks)
- Fused silica lined system eliminates trace sulfur reactions during injection
