Standard Refinery Gas Analysis (RGA) With Trace Carbon Oxide Detection
Analyzer Description
Configuration:
6-valve, packed and capillary columns, methanizer, TCD / TCD / FID
Sample type:
Natural gas, sour gas, other refinery gases
Components separated:
C₁ - C₇, hydrogen, carbon dioxide, hydrogen sulfide, oxygen, nitrogen, carbon monoxide
Lower detection limits:
FID / TCD: 20 ppm for hydrocarbons, 100 ppm for permanent gases, 500 ppm for H₂S
Lower detection limits:
Methanizer / FID: 1 ppm for methane, carbon monoxide, and carbon dioxide
Methods met:
ASTM D1945, ASTM D1946, ASTM D7833, UOP 539, ASTM D2504 Appendix X1, Wasson-ECE 383-MET, 383D-MET

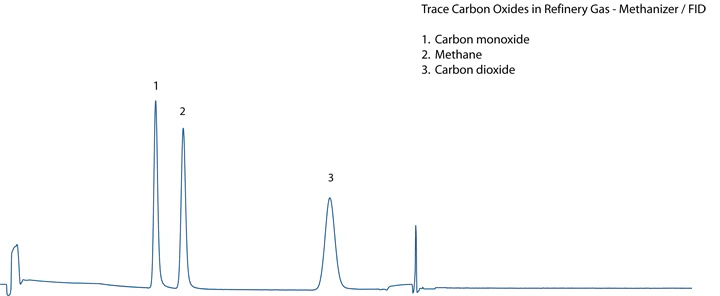

Typical Chromatogram
Key Features and Benefits
- Liquid valves can be added for LPG analysis
- The backflush peak can be tailored to specific samples (e.g. C₆₊ or C₈₊ backflush composite peaks)
- Can be converted to all capillary columns to achieve better resolution and detection limits
- A fourth FID can be added for the simultaneous analysis of trace carbon oxides
